Is the Brother PE535 still being made?

No. Brother discontinued the PE535. It no longer appears in Brother's active product lineup. Third-party and used listings are still available through Amazon, but there is no new-unit retail channel. The current embroidery-only machines from Brother in the home tier are the PE800 and PE900 (5x7 field).

What is the max embroidery field size on the Brother PE535?

The Brother PE535 has a maximum embroidery area of 4 inches by 4 inches (100mm x 100mm). This field size covers standard left-chest logos under 3.5 inches wide, three-letter monograms, pocket accents, and small decorative designs. Designs with outer borders should stay under 3.7 to 3.8 inches total to avoid clipping at the hoop margin.

Is the Brother PE535 a sewing machine or embroidery-only?

The PE535 is embroidery-only. It has no general sewing stitches. The 'PE' prefix in Brother's naming convention indicates embroidery-only machines, as distinct from the 'SE' series (which combines sewing and embroidery in one body). Buyers who need both functions should look at the SE600 or SE700 instead.

Should I buy a used Brother PE535 or save for the PE900?

If your designs consistently stay within 4x4 and a well-priced used unit with a return policy is available, the PE535 covers that use case. If you ever plan to run 5x7 designs (large monograms, baby blanket centers, quilt blocks), the PE535 cannot be upgraded to reach that field size. The PE900 at $1,179.99 opens the 5x7 field and comes with manufacturer support.

What file format does the Brother PE535 use?

The PE535 uses .PES format, the same native format as all current Brother embroidery machines (SE700, PE900, PR680W). A design purchased in .PES format loads via USB directly to the PE535 without conversion. The machine also accepts .DST files, though DST lacks color data and requires manual re-threading at each color change.

Brother PE535 Review: 4x4 Embroidery-Only Machine, Discontinued

The Brother PE535 is a discontinued embroidery-only machine with a 4x4 inch maximum field. Brother no longer manufactures it, but third-party and used listings remain available on Amazon. This review covers the PE535’s verified specifications, what the 4x4 field can actually fit, and the honest comparison against the PE900 for buyers deciding whether used makes sense.

The PE535 is not a sewing machine. It embroiders only. That distinction matters when comparing it against Brother’s SE-series combo machines.

PE535 specs at a glance

Spec	PE535
Machine type	Embroidery-only
Max embroidery area	4” x 4” (100x100mm)
Built-in designs	80
Embroidery fonts	9
Frame patterns	10
Connectivity	USB port
Needle threading	Automatic
Lighting	LED
Warranty	25-year limited
Status	Discontinued

Specs verified against Brother USA product documentation, June 2026.

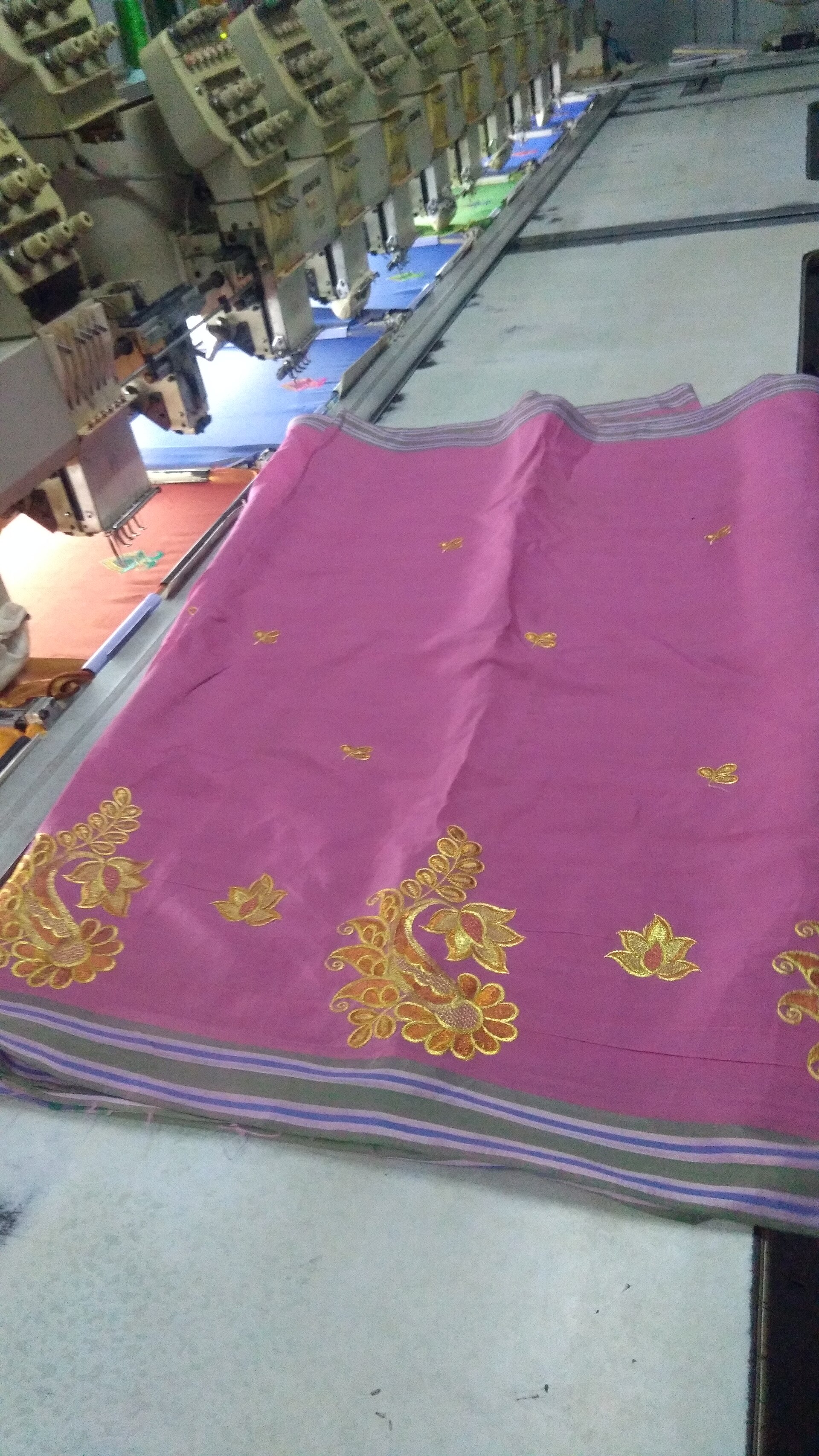

A finished machine-embroidered design stitched into fabric — The PE535 is an entry embroidery-only machine; output like this, at a 4x4 ceiling, is what it does. Design quality is mostly digitizing and stabilizer, not the price of the machine. *Srini297 via Wikimedia Commons. CC BY-SA 4.0.*

What fits the 4x4 field

The 4-inch-by-4-inch field is the single most important spec on an entry embroidery machine. Here is what it handles:

Design category	Fits 4x4?
Left-chest logo under 3.5”	Yes
Standard 3-letter monogram	Yes
Pocket accent design	Yes
Small patch under 3.7”	Yes, borderline
Large towel monogram (4-6”)	No
Baby blanket center panel	No
Full back lettering (5-7”)	No

Keep total design width under 3.8 inches to stay clear of the hoop frame’s inner margin. A design labeled “4x4 compatible” may still include a decorative outer border that clips if the total motif reaches the nominal 4-inch boundary.

Close-up of hands threading an embroidery machine needle in a workshop — Threading an embroidery-only machine follows the same diagram-guided path on the PE535 as on the PE900 and SE700: tension discs, take-up lever, needle bar, automatic threader. The path is the same; the PE535's lighter thread-management system is calibrated for the 4x4 design loads it's built to run. *Pavel Danilyuk via Pexels. Pexels License.*

Embroidery-only versus combo: what you give up

Brother’s SE-series machines (SE600, SE700) combine a sewing machine and an embroidery machine in one body. The PE535 does not. Both approaches have a place:

PE535 advantage: dedicated embroidery-only machines keep the interface focused on the embroidery workflow without sewing controls taking up space.

SE-series advantage: one machine that seams, hems, and embroiders. For buyers who sew at all, the SE700 at $579.99 gives both functions with a current-production warranty. The SE700 review covers the combo workflow in full.

If you only embroider and never sew, the embroidery-only form factor is fine. If you do both, the combo machines are the better buy even at a higher price.

PE535 versus PE900: the honest comparison

The PE900 is Brother’s current flagship home embroidery-only machine. Here is how the two machines stack up:

Spec	PE535	PE900
Max field	4x4	5x7
Built-in designs	80	200
Embroidery fonts	9	11
Connectivity	USB only	USB + wireless
Status	Discontinued	Current
Approximate price	Used market	$1,179.99

The field size gap is the central question. A 5x7 field opens design categories the 4x4 cannot reach: large monograms, quilt blocks, sports jersey names, baby blanket panels. If your designs consistently stay in the 4x4 range, a used PE535 covers the use case. If you have any expectation of running larger designs in the next couple of years, the PE900 is the correct machine to buy. The PE900 review covers what the 5x7 field actually unlocks in practice.

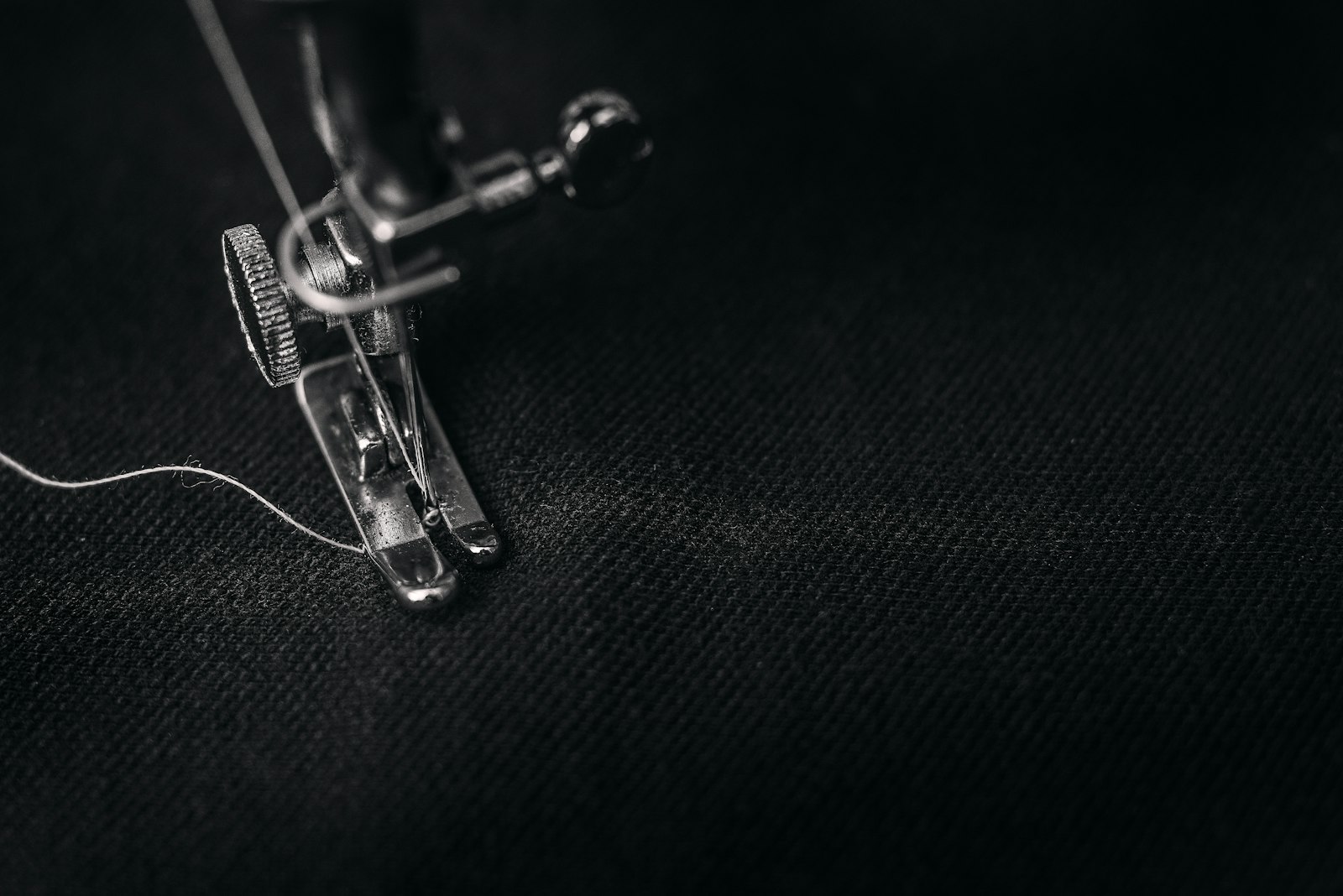

Close-up of a sewing machine presser foot and needle showing mechanical precision detail — The mechanical relationship between needle, presser foot, and hoop frame is the same across Brother's home embroidery line. The PE535 runs the same PES design files, the same hoop mounting sequence, and the same color-change stop-and-resume workflow as the PE900 and SE700. The differences are in field size, built-in library count, and connectivity. *Alexander Andrews via Unsplash. Unsplash License.*

File format compatibility

The PE535 uses .PES format, the same native format as every current Brother machine. A design file purchased in .PES format from any major design marketplace loads directly via USB without conversion. The machine also accepts .DST (Tajima universal format), though DST files do not carry color data, which means the machine stops at each color change and waits for manual re-threading.

If you already own a library of .PES files, they transfer directly to the PE535 with no conversion step. The embroidery file formats guide covers what PES stores versus what DST drops and why that matters for color-heavy designs.

Who should consider a used PE535

Buy a used PE535 if you embroider only (no sewing), your designs consistently stay within 4x4, you find a reliable used unit from a seller with a return policy, and the price is substantially below the SE700’s $579.99 retail.

Skip the PE535 if the price gap between a used unit and the SE700 is narrow, you sew at all (the SE700 handles both and is current production), you have any interest in 5x7 designs, or manufacturer support and warranty coverage matter to you. The PE900 and SE700 are both current-production machines with active parts, dealer networks, and warranty coverage.

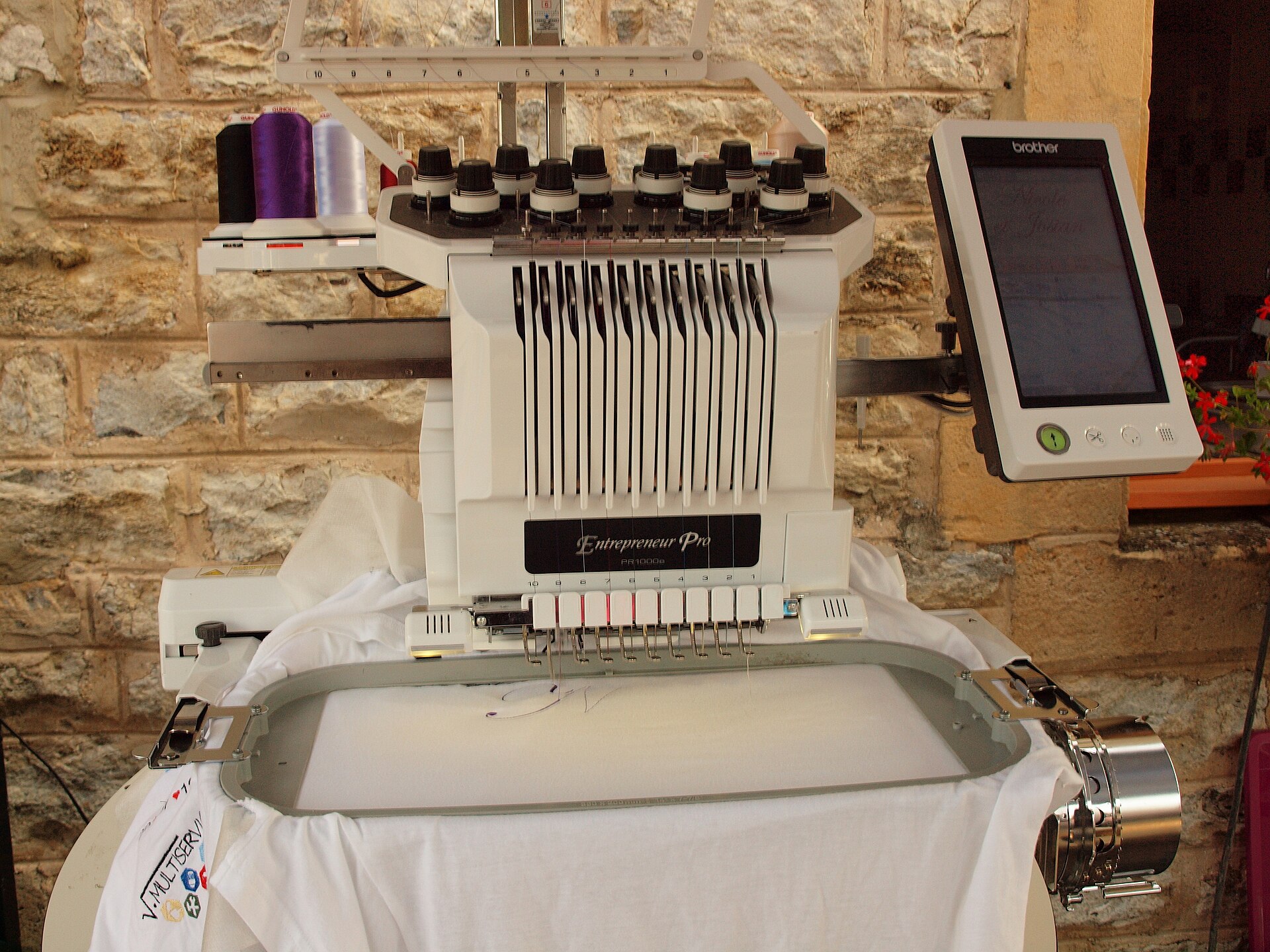

A Brother embroidery machine on display showing the touchscreen and machine body setup — The PE535's color LCD display navigates the 80 built-in designs and 9 embroidery fonts using the same workflow as current Brother machines: select design, size, color sequence, hoop, run. The display is smaller than the PE900's and lacks wireless connectivity, but the core embroidery workflow is identical. *François GOGLINS via Wikimedia Commons. CC BY-SA 4.0.*

The PE535 is discontinued on Brother’s direct channel. Third-party and used listings are available via Amazon search. Verify the seller’s return policy before purchasing any used machine.

For field size decisions, the embroidery hoop sizes guide covers every standard hoop against every design category in a single table.
